AIT S-11 Resistance Welding Electrode

The S-11 series is designed after the Hughes GW011 type, and is a very long deep access parallel gap electrode with an insulator (spacer) that binds the two halves together and establishes the width of the gap. This series is usually chosen for welding applications with tall obstacles around the welding target. Custom materials are available. Contact the factory for assistance at (870)-269-4367.

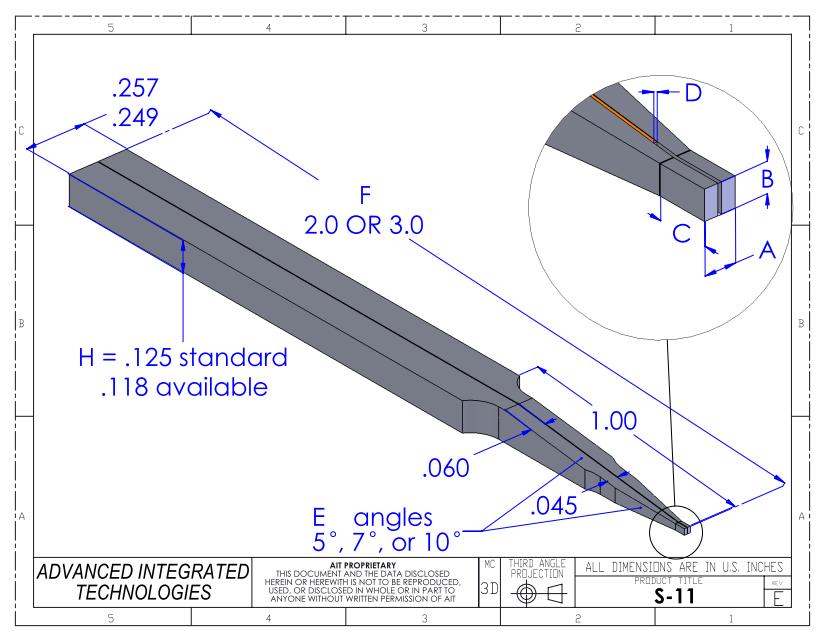

Understanding AIT part numbers is very simple.  Various dimensions on the drawing are represented by letters, which correspond to values in the part number.  The beginning of the part number establishes the electrode series and material, followed by various dimensions. For example, part number S-11-M-A.010B.010C.015D.0015E7F3.0 is a molybdenum electrode with an A dimension of .010  .  You can request a quote by filling in dimensions below in the custom part number and indicating the quantity you wish to have quoted in the comments section.  Or you can request a quote for a standard part number in the list below by entering a quantity in the box next to the desired part number.  Equivalent Hughes part numbers are listed below cross referenced to AIT part numbers.
Invalid Input
Invalid Input
Invalid Input
Invalid Input

To request a quote for a standard part number, fill in the quantity desired in the box(s) next to the desired part number below.

Invalid Input

AIT Standard Part Numbers :
S-11-M-A.010B.010C.015D.0015E7F3.0

Invalid Input

AIT Standard Part Numbers :
S-11-M-A.015B.015C.030D.0015E7F3.0

Hughes Part Numbers :
GW011-3A

Invalid Input

AIT Standard Part Numbers :
S-11-M-A.020B.020C.035D.003E7F3.0

Hughes Part Numbers :
GW011-2A

Invalid Input

AIT Standard Part Numbers :
S-11-M-A.025B.025C.045D.003E7F3.0

Hughes Part Numbers :
GW011-1A

To request a quote for a custom part number, fill in the blanks in this sample part number below and indicate the quantity desired under comments:

Invalid Input
Invalid Input
Invalid Input
Invalid Input
Invalid Input
Invalid Input
Invalid Input
Invalid Input
