AIT S-12 Resistance Welding Electrode

The S-12 series is used for parallel gap bonding and resistance reflow soldering. This product comes in two main styles. The centered version has equal clearance cuts on both front and back, while the offset version has the tip shifted to the front face to allow for bonding near obstacles. Contact the factory for assistance at (870)-269-4367.

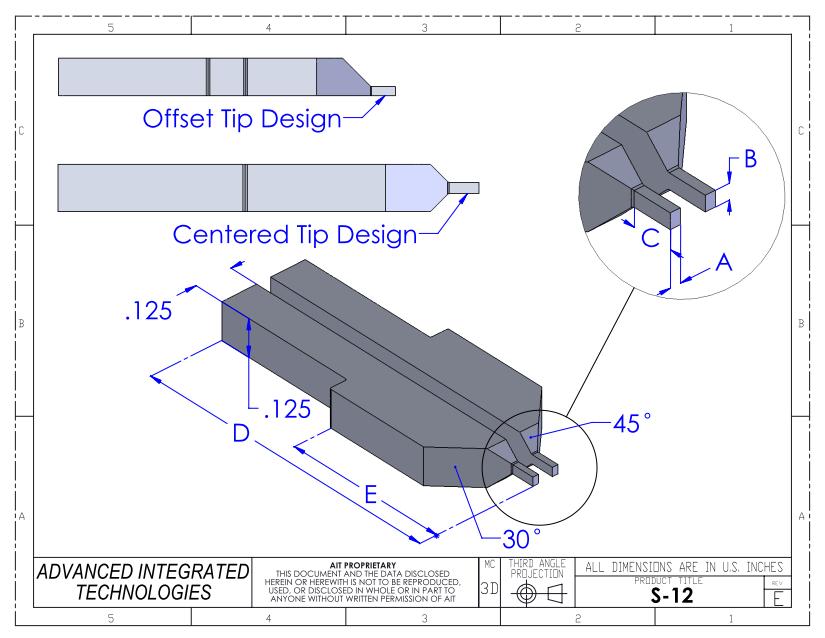

Understanding AIT part numbers is very simple.  Various dimensions on the drawing are represented by letters, which correspond to values in the part number.  The beginning of the part number establishes the electrode series and material, followed by various dimensions. For example, part number S-12-2-A.020B.030C.080D1.125E.625-Ois a copper electrode with an A dimension of .020  .  You can request a quote by filling in dimensions below in the custom part number and indicating the quantity you wish to have quoted in the comments section.  Or you can request a quote for a standard part number in the list below by entering a quantity in the box next to the desired part number.  Equivalent Miyachi part numbers are listed below cross referenced to AIT part numbers.
Invalid Input
Invalid Input
Invalid Input
Invalid Input

To request a quote for a standard part number, fill in the quantity desired in the box(s) next to the desired part number below.

Invalid Input

AIT Standard Part Numbers :
S-12-2-A.020B.030C.080D1.125E.625-O

Miyachi Part Numbers :
EU1000

Invalid Input

AIT Standard Part Numbers :
S-12-2-A.020B.030C.080D2.000E1.500-O

Miyachi Part Numbers :
EU1002

Invalid Input

AIT Standard Part Numbers :
S-12-M-A.020B.030C.080D2.000E1.500-C

Miyachi Part Numbers :
EU2030ML

Invalid Input

AIT Standard Part Numbers :
S-12-M-A.025B.037C.100D1.125E.625-C

Miyachi Part Numbers :
EU2537M

Invalid Input

AIT Standard Part Numbers :
S-12-M-A.020B.030C.080D1.125E.625-C

Miyachi Part Numbers : EU2030MR

To request a quote for a custom part number, fill in the blanks in this sample part number below and indicate the quantity desired under comments:
