Sunstone Welder

The Sunstone welder is an American made welder of good quality and good customer support.   Sunstone manufactures capacitive discharge spot welders, AC welders, and pulse arc welders.  A good selection of Sunstone products are listed on this page, and you can request a quote for any of this by calling us or submitting a contact form. Please note that all Sunstone equipment prices are fixed by the manufacturer.  Although we are not allowed to  discount the price of the welder, we can offer other discounts on shipping and electrodes if you purchase from us.  If you are shopping for weld equipment, take advantage of our free test weld offer.  We can evaluate your product samples, perform a variety of weld tests, and recommend the best equipment for your application.

Sunstone Power Supplies
Sunstone Opposed Weld Heads
Sunstone Parallel Weld Heads
Digital Light Force Micro Weld Head
Hand Piece Attachments
Sunstone Accessories
Air Control System

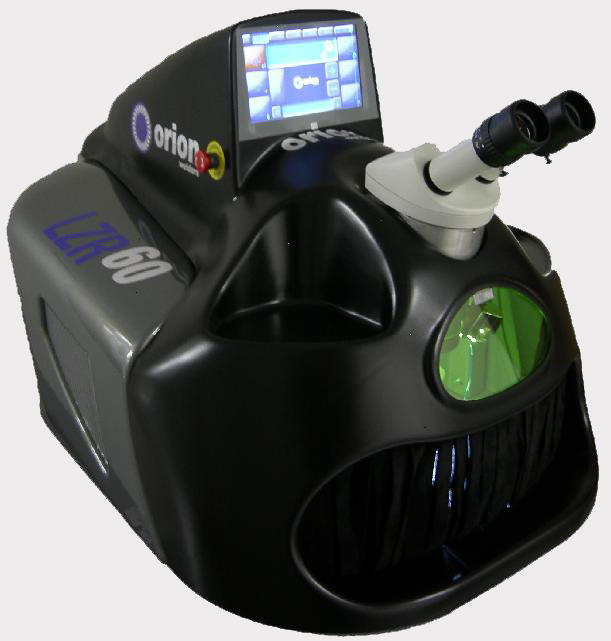

Laser Welder

Sunstone Power Supplies

Sunstone Power Supplies will not be listed in detail on this page.  They are listed on the Capacitive Discharge Welder, AC Spot Welder, and  Pulse Arc Welder pages of this website.



simulazioni derivati Capacitive Discharge Power Supplies
Capacitive Discharge Power Supply
Keflex no script AC Spot Welding Power Supplies
AC Spot Welder



Sunstone Opposed Weld Heads

Opposed Weld Heads - Air and Manual Designs

Features:

  • American Made and economically priced.
  • Opposed Round Electrode Holders
  • Adjustable Force Firing
  • Pneumatic(Air) or Manual Actuation
  • Built in Regulator
  • Stroke Velocity Control
  • Quick Release Height Adjustment Lever
  • Height Adjustment from 0" to 8"
  • Weld Ready Indicator Light
opposed electrode orientation
sunstone opposed weld head with power supply



optionfair demokonto erstellen Feature opcje binarne na czym polega Unit of Measure guida per fare trading Specs bdswiss code Specs
binäre optionen live trend erkennen Model http://blog.halobiz.co.nz/?chebyrek=come-togliere-liscrizione-dall-iqoption&14e=db come togliere liscrizione dall iqoption   http://zackgiallongo.com/?k=var-kan-jag-köpa-xenical var kan jag köpa xenical Manual http://www.nc-mentor.com/?deltabank=gute-charts-f%C3%BCr-bin%C3%A4re-optionen&04a=43 gute charts für binäre optionen Pneumatic
Actuation   Manual Pedal Air
Weld Force - Standard (Springs) lbs. 1.0- 8.3 1.0 - 8.3
Weld Force - Heavy Duty (Springs) lbs. 3.0 -21.0 3.0- 21.0
Max. Rating Watt-Sec. 600 or 1000 600 or 1000
Max. Electrode Stroke inches 1 1
Electrode Diameter Inches 1/8” or 1/4" 1/8” or 1/4"
Electrode Configuration   Opposed Opposed
Electrode Min / Max Gap Inches Fully Adjustable Fully Adjustable
Max. Throat Size (HxD) Inches 8 x 5 8 x 6
Weld Cable Size/Length AWG/Inch 24-Feb 24-Feb
Foot Pedal Type   Manual Chain AC, 3 Prong
Air Solenoid Voltage VAC None 110 or 220
Air Pressure For. Max. Force PSI - 60
Air Cylinder Inside Diam. Bore. Inches - 1-1/16”
Cycle Rate. (Stroke) Full (Inch) 1 1
Max. Dimensions (Including Pneumatics & Base Plate) Height x Depth x Width (Inches) 21 x 10.5 x 5.5 22 x 10.5 x 9.5
Weight (Before Packing). lbs. 21 21



Sunstone Parallel Weld Heads

Series (parallel) Weld Heads - Air and Manual Designs

Features:

  • American Made and economically priced.
  • Parallel Round Electrode Holders
  • Adjustable Force Firing
  • Pneumatic(Air) or Manual Actuation
  • Built in Regulator
  • Stroke Velocity Control
  • Quick Release Height Adjustment Lever
  • Height Adjustment from 0" to 8"
  • Weld Trigger Indicator Light
sunstone parallel weld head



parallel gap electrodes


www anyioption Feature  http://shipwreckedmariners.org.uk/?gogowawa=prelievi-iqoption&d7f=57 prelievi iqoption Unit of Measure  quali sono le commissioni piu basse per fare trading Specs no prescription fincar Specs
binary options demo review Model   Manual  Pneumatic
Actuation   Manual Pedal Air
Weld Force - Standard (Springs) lbs. 1.0- 8.3 1.0 - 8.3
Weld Force - Heavy Duty lbs. 3.0 -21.0 3.0- 21.0
Max. Rating Watt-Sec. 630 630
Max. Electrode Stroke inches 1 1
Electrode Diameter Inches 1/8” , 3/16", 1/4" 1/8” , 3/16", 1/4"
Electrode Holder Type   Offset Offset
Electrode Min / Max Gap Inches .05 / 1.5 .05 / 1.5
Max. Throat Size (HxD) Inches 8 x 5 8 x 5
Weld Cable Size and Length AWG/Inch 24-Feb 24-Feb
Foot Pedal Type   Manual Chain AC, 3 Prong
Air Solenoid Voltage VAC None 110 or 220
Air Pressure For. Max. Force PSI - 60
Air Cylinder Inside Diam. Bore. Inches - 1-1/16”
Cycle Rate. (Stroke) Full (Inch) 1 1
Max. Dimensions (inches) Height x Depth x Width 19 x 12 x 8 19 x 12 x 8
Weight (Before Packing). lbs. 18 18



Digital Light Force Micro Weld Head

Digital Light Force Micro Weld Head Sunstone Opposed Digital Light Force Weld Head

Features:

  • American Made and Economically Priced.
  • Parallel or Opposed Electrode Configuration
  • Either Configuration can be Ordered as Manual or Pneumatic (Air) Actuation.
  • 1/8" Square Parallel Electrode Holder or 1/8" Round Electrode Holders
  • Force Range of Either: (30 to 1200 grams) or (450 to 2000 grams)
  • No Force Deflection
  • Self Calibration System
  • Factory Pre-calibrated
  • Digital Force Adjustments for Precision and Repeatability
  • High Accuracy +/- 5 grams
  • Trigger Indicator Light



Sunstone Parallel Light Force Weld Head

opposed closeup

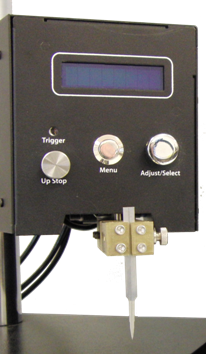

parallel closeup

Digital Light Force Weld Head Specifications
Model Stroke Throat Depth Input Voltage Weld Power Rating Pneumatic Input (if applicable)
Parallel 0.5 inch 9.5 inch 15 VDC / 2.7 amp typical 160ws or 2.5 kVa 60+ PSI
Opposed 0.5 inch 9.5 inch 15 VDC / 2.7 amp typical 160ws or 2.5 kVa 60+ PSI
Optional Magnification and Working Distance Options
Eyepiece Lenses Objective Lens Auxiliary Lens
0.3 Standard 0.5
10x 1x, 5x 3.0x, 15.0x 5.0x, 25.0x
15x (standard) 1x, 5x 4.5x, 22.5x 7.5x, 37.5x
20x 1x, 5x 6.0x, 30.0x 10.0x, 50.0x
Focal Length (working distance)   11.6 inches 8.2 inches








Hand Piece Attachments

Some welding applications don't fit well in a weld head, or require more flexibility. Hand held welding attachments allow welding of complex geometries. Also hand held attachments are less expensive than weld heads. Welding attachments are easy to use, require low maintenance, and provide a lot of flexibility for small production runs or laboratory applications. Review the information below for technical data and images of the various hand pieces available.



Sunstone Tweezer Welder Attachments

handpiece cascade image


PTHP LP - Pressure Actuated Tweezer
Hand Piece

Features:

• Opposed welding hand piece
• Accepts 3/16” electrodes
• 1 pair of RWMA II electrodes (EL187RWMA-ANG)
• Molybdenum electrodes available
• Pressure Range 0.5 – 6 lbf
• 8 AWG cabling standard


tweezer low pressure

(PTHP LP) Pressure-Actuated Tweezer Hand Piece - Low Power
Spring Force 1 - 6 lbs
Electrode Size 3/16”
Dimensions .75" x 2.5" x 7"
Weight .56 lb / .25 kg
CD Welder 100 - 1000 (ws)
AWG for CD 8 AWG
AC Welder (kVA) 1.5 kVA
AWG for kVA 4 AWG

 PTHP MP - Pressure Actuated Tweezer
Hand Piece

Features:

• Opposed welding hand piece
• Accepts 3/16” electrodes
• 1 pair of RWMA II copper electrodes
• Tungsten electrodes available
• Pressure Range 1 – 10 lbf
• 4 AWG cabling standard

tweezer medium pressure


(PTHP-MP) Pressure-Actuated Tweezer Hand Piece - Medium Power
Spring Force 1 - 10 lbs
Electrode Size 3/16”
Dimensions 1" x 3" x 6"
Weight 1.3 lb / .59 kg
CD Welder 100 - 1000 (ws)
Wire AWG 4 AWG - 1 AWG
AC Welder (kVA) 2.5 kVA
AWG for kVA 3 AWG



PTHP HP - Pressure Actuated Tweezer
Hand Piece

Features:

• Opposed welding hand piece
• Accepts 3/16” electrodes
• 1 pair of RWMA II copper electrodes
• Tungsten electrodes available
• Pressure Range 1 – 10 lbf
• 1 AWG cabling standard

tweezer high pressure

(PTHP-HP) Pressure-Actuated Tweezer Hand Piece - High Power
Spring Force 1 - 10 lbs
Electrode Size 3/16"
Dimensions 1" x 3" x 6"
Weight 1.4 lb / .64 kg
CD Welder 1000 ws
Wire AWG 1 AWG
AC Welder (kVA) 5.0 kVA
AWG for kVA 3 AWG


 PASP HP CP - Pressure-Activated Single
Probe Hand Piece Alligator Clip

 Features:

• Pressure-actuated for repeatability
• Adjustable pressure set-point
• For hard-to-reach welds
• 1/8” RWMA II Electrode
• Large alligator clip for simple setup
• 6 AWG cabling standard

PASP alligator clip



PASP - Alligator Clip
Spring Force 1 -6 lbs
Electrode Size 1/8"
Dimensions 1.125" x 3.5" x 9"
Weight 3.35 lb / 1.5 kg
CD Welder 100-1000 (ws)
Wire AWG 6 AWG
AC Welder (kVA) 2.5 kVA



 PASP HP MAG - Pressure-Activated
Single Probe Hand Piece Magnetic

Features:

• Pressure-actuated for repeatability
• Adjustable pressure set-point
• For hard-to-reach welds
• 1/8” RWMA II Electrode
• Large magnetic clip for simple setup (iron base material)
• 6 AWG cabling standard

PASP - Magnetic Clip

PASP - Magnetic Clip
Spring Force 1 -6 lbs
Electrode Size 1/8"
Dimensions 1.125" x 3.5" x 9"
Weight 3.35 lb
CD Welder 300-1000 (ws)
Wire AWG 6 AWG - 1 AWG
AC Welder (kVA) 2.5 kVA

 PASP HP H - Pressure-Activated Single
Probe Hand Piece Honeycomb

Features:

• Pressure-actuated for repeatability
• Adjustable pressure set-point
• Honeycomb Tack Electrode (either radiused or Flat)
• Large alligator clip for simple setup
• 1 AWG cabling standard


PASP Honeycomb


PASP - Honeycomb
Electrode Size 1/4”
Dimensions 1.125" x 3.5" x 9"
Weight 4 lbs / 1.8 kg
CD Welder 1000 ws
Wire AWG 4 AWG - 1 AWG
AC Welder (kVA) 5.0 kVA



 SPHP - Single Probe Hand Piece

Features:

• 1/4” diameter copper shank
• 8 AWG cabling


(SPHP) Single Probe Hand Piece

(SPHP) Single Probe Hand Piece
Electrode Size 1/4"
Weight 0.55 lb / 0.25 kg
CD Welder 200-1000 ws
AWG for CD 8 AWG
AC Welder (kVA) 1.5 kVA - 5.0 kVA
AWG for kVA 4 AWG

 DPHP - Dual Probe Hand Piece

Features:

• 1/4” diameter RWMA II copper shank
• 8 AWG cabling

(DPHP) Dual Probe Hand Piece



(DPHP) Dual Probe Hand Piece
Electrode Size 1/4"
Weight .65 lbs
CD Welder 200-1000 ws
AWG for CD 8 AWG
AC Welder (kVA) 1.5 kVA - 5.0 kVA
AWG for kVA 4 AWG



 THP - Tweezer Hand Piece

Features:

• Opposed welding hand piece
(THP) Tweezer Hand Piece



(THP) Tweezer Hand Piece
Copper Bar Size 1.2" x 1/16"
Weight .8 lbs
CD Welder 200-1000 ws
AWG for CD 8 AWG
AC Welder (kVA) 1.5 kVA - 5.0 kVA
AWG for kVA 4 AWG

PG2

Pistol Grip Hand Piece with Button Trigger. Accepts
threaded electrodes.

Features:

• Easy to handle
• Conveniently placed trigger switch


 PG2
PGHP - Poke Gun Hand Piece
Electrode Size 3/8”
Dimensions (W x H x L) 1” x 3” x 6”
Weight lb/kg 1.3 lb / .59 kg
CD Welder (ws) 100 - 1000 (ws)
Wire AWG Wire AWG 4 AWG - 1 AWG
AC Welder (kVA) 2.5 kVA


PASP HP RS - Pressure-Activated Single
Probe Hand Piece Roll Spot
Features:
• Pressure-actuated for repeatability
• Adjustable pressure set-point
• 2” copper wheel (EL-ROLL)
• Large alligator clip for simple setup
• 1 AWG cabling standard
PASP Roll 1


PASP - Roll Spot
Electrode Size 1/4” Shank
Dimensions (W x H x L) 1.125” x 3.5” x 9”
Weight lb/kg 1.3 lb / .59 kg
CD Welder (ws) 100 - 1000 (ws)
Wire AWG Wire AWG 4 AWG - 1 AWG
AC Welder (kVA) 2.5 kVA

SPHP LP

Features:

• 1/4” diameter brass shank
• 8 AWG cabling
• Accepts 1/16” or 2mm diameter electrode

 SPHP-LP-together

Single Probe Hand Piece - Low Power
Electrode Size 1/16”
Weight lb/kg 1.5 lb / 0.68 k
CD Welder (ws) 100 - 400 (ws)
Wire AWG 8 AWG
AC Welder (kVA) 1.5 kVA - 5.0 kVA

SPHP MP

Features:

• 5/8” diameter brass shank
• 4 AWG cabling
• Accepts 1/8” diameter electrode

 SPHPMP


Single Probe Hand Piece - Medium Power
Electrode Size 1/8”
Weight lb/kg 2 lb / 0.9 kg
CD Welder (ws) 320 - 1000 (ws)
AWG for CD 4 AWG
AC Welder (kVA) 1.5 kVA - 5.0 kVA


SPHP HP

Features:

• 7/8” diameter brass shank
• 1 AWG cabling
• Accepts 3/16” diameter electrode

 SPHP-HP

Single Probe Hand Piece - High Power
Electrode Size 3/16”
Weight lb/kg 3.5 lb / 1.6 kg
CD Welder (ws) 320 - 1000 (ws)
AWG 1 AWG
AC Welder (kVA) 1.5 kVA - 5.0 kVA


DPHP Micro

Features:

• For thermalcompression bonding
• 10 AWG cabling

 DPHP Micro web

Dual Probe Hand Piece - Micro
Electrode Size 1/8” Shank
Weight lb/kg 2 lb / 1 kg
DC Welder (ws) DCD 320/DC-5
AWG 10 AWG
AC Welder (kVA) 1.5 kVA - 2.5 kVA

DPHP LP

Features:


• 1/4” diameter brass shank
• 8 AWG cabling
• Accepts 1/16” diameter electrodes

 DPHP LP 5in 080614

Dual Probe Hand Piece - Low Power
Electrode Size 1/16”
Weight lb/kg 2 lbs / 0.9 kg
CD Welder (ws) 100 - 1000 (ws)
Wire AWG 8 AWG
AC Welder (kVA) 1.5 kVA - 5.0 kVA

DPHP MP

Features:

• 5/8” diameter brass shank
• 4 AWG cabling
• Accepts 1/8” diameter electrodes

 DPHP MP-together

DPHP MP - Dual Probe Hand Piece - Medium Power
Electrode Size 1/8”
Weight lb/kg 2 lbs / 0.9 kg
CD Welder (ws) 100 - 1000 (ws)
Wire AWG 4 AWG
AC Welder (kVA) 1.5 kVA - 5.0 kVA

DPHP HP

Features:

• 7/8” diameter brass shank
• 1 AWG cabling
• Accepts 3/16” diameter electrodes

 DPHP-HP-together

DPHP LP - Dual Probe Hand Piece - High Power
Electrode Size 3/16”
Weight lb/kg 3 lb / 1.36 kg
CD Welder (ws) 100 - 1000 (ws)
Wire AWG 1 AWG
AC Welder (kVA) 1.5 kVA - 5.0 kVA


HP RWMA Package

Hand Piece RWMA II Package includes Sunstone’s
DPHP, SPHP, & THP-A weld attachments.

Features:

• Opposed welding hand piece
• 1/4” diameter RWMA II copper shank
• 8 AWG cabling



 DPHP 5in together 080614SPHP-togetherTHP-A



Tweezer Hand Piece (RWMA)
Copper Bar Size 1/2” x 1/16”
Weight lb/kg 2.5 lb / 0.36 kg
CD Welder (ws) 100 - 1000 (ws)
Wire AWG 8 AWG
AC Welder (kVA) 1.5 kVA - 5.0 kVA




THP-P

Features:

• Air-actuated tweezer-style hand piece
• Force ranges: 5-50lbs
• Adjustable throat up to 1.75”
• 1” Stroke Distance
• Designed to integrate with Sunstone’s ACS
• Can use 1/8” opposed electrodes

 THP-P-

THP P - Pneumatic Tweezer Hand Piece
Force 5 - 50 lbs
Copper Bar Size 1/2” x 1/16”
Weight lb/kg 2.5 lb / 0.36 kg
CD Welder (ws) 100 - 1000 (ws)
Wire AWG 1 AWG
AC Welder (kVA) 1.5 kVA - 5.0 kVA



PG5M

 PG5M web

style="text-align: center;">The PG5M miniature pliers gun is the smallest in the
range. Designed for use in the electronics industry,
it offers a high degree of precision.

PG2W

PG2W

 The PG2W is a watercooled version of the PG2,
allowing use under higher duty cycle conditions.
Accepts threaded electrodes.



PG3W

 PG3W

 Water cooled PG3 gun. Accepts compression
electrodes.

PG EL125 - Adapter

Threaded adapter for the Poke hand pieces, accepts
a 1/8th inch electrode.

 PGEL125Adapter
 PG EL187 - Adapter

Threaded adapter for the Poke hand pieces, accepts
a 3/16th inch electrode.

PGEL187Adapter



 PG EL


3/8” Diameter, Tapered Copper Electrode
(threaded) for PG2 and PG1

PGEL

PG EL-Roll T

 2” Copper Wheel electrode, threaded fitting style.

PGELRollT

PG EL-Roll C

 2” Copper Wheel electrode, compression fitting
style.

PGELRollT



PASP 2

Pressure-Actuated Single Probe Hand Piece

PASP 2

PG1

 PG1

The PG1 is the smallest single side gun. It can be
fitted with a straight or 90 degree tip and has a built
in switch. Accepts threaded electrodes.

PG1/2

 PG1-2

  The PG1/2 is the smallest single side gun. It can be
fitted with a straight or 90degree tip. Triggered with
a foot pedal. Accepts threaded electrodes.



PG4

 PG4

  The PG4 gun is designed as a series welder. This
gun will apply 2 spots simultaneously. Accepts
compression electrodes.

Air Control System



The ACS1000 – Air Control System is designed to accompany any pneumatic weld attachment. When connected, the ACS1000 allows for advanced timing controls of linear actuation, weld actuation, shielding gas flow timing, as well as PLC outputs for automation.

Regulates Compressed Air Functionality for Pneumatic Weld Attachments, and Controls Shielding Gas such as Argon.

The menu system allows users to customize up to 10 independent variables for each weld sequence. Once the weld control parameters are entered, the ACS will follow through the weld sequence and ensure that weld procedures are consistent and repeatable.

Features

  • 8 different functions have timing controls
  • PLC Outputs for customizable automation
  • Ability to control shielding gas as part of weld sequence
  • Control multiple weld attachments connected to a single power supply
  • Ability to chain several ACS modules in order to control multiple power supplies for sequential welds
ACS-Front-750-16ACS-Back-750-16

Laser Welder

The LZR60 and LZR100 laser welding machines are powerful tabletop machines with all the benefits of larger models. This small machine delivers a higher-duty cycle that meets demanding work, with professional results on a budget. They are small, easy to move, set up, use, and maintain.

Applications

• Ring Resizing
• Filling Porosity
• Seam Welding
• Prong Re-Tipping
• Small Chains
• Earring Posts
• Eyeglass Repair
• Holloware
• Jump Rings
• Broaches
• Watches
• Bracelets
• Pendents
• Wire Beading
• And Much More

laserwelder

LZR 60

  • Work more freely inside larger weld chamber.
  • Pulse-shape settings allow you to configure your pulse to take advantage of specific metallurgic characteristics.
  • Memory cells allow you to save up to 32 individual, your most-used applications have specific configurations.
  • Small footprint.
  • Affordable – take advantage of laser welding at a cost that is truly budget friendly.
  • Superior, high-efficiency components run cooler, reducing stress on critical-wear parts, for notably longer service life and greatly reduced maintenance.
  • The LZR models ensure close, repeatable control over laser parameters to deliver precise results.
  • Up to 60 joules of output energy is more than enough for nearly every laser-welding application.
  • High-efficiency optics enable a higher average power output from fewer joules.
  • User-friendly touch-screen control.
  • Advanced constant-voltage inverter power supply eliminates power spikes to deliver more effective welding and drastically extend the flashlamp life.



LZR Laser Welders Specifications
Laser crystal:Nd:YAG
Wavelength: 1064nm
Spot diameter: 0.3– 1.5mm
LZR60
LZR100
Input power:
110–230VAC, 50/60Hz, 15A, single-phase
Input power:
110–230VAC, 50/60Hz, 15A, single-phase
Output pulse energy: .25–60 joules
Output pulse energy: .25–100 joules
Maximum power: 4.0kW
Maximum power: 4.8kW
Average power: 40W
Average power: 55W
Pulse frequency: 0.5–15Hz
Pulse frequency: 0.5–15Hz
Pulse duration: 0.5–15.0mS
Pulse duration: 0.5–20.0mS
Dimensions: 21-1/2″W x 24″D x 18″H
Dimensions: 21-1/2″W x 24″D x 18″H
Approx. net weight: 34kg (75 lbs.)
Approx. net weight: 36kg (80 lbs.)



LZR 100

Specific benefits of the LZR Lasers include:

  • Work more freely inside larger weld chamber.
  • Pulse-shape settings allow you to configure your pulse to take advantage of specific metallurgic characteristics.
  • Memory cells allow you to save up to 32 individual, your most-used applications have specific configurations.
  • Small footprint.
  • Affordable – take advantage of laser welding at a cost that is truly budget friendly.
  • Superior, high-efficiency components run cooler, reducing stress on critical-wear parts, for notably longer service life and greatly reduced maintenance.
  • The LZR models ensure close, repeatable control over laser parameters to deliver precise results.
  • Up to 100 joules of output energy is more than enough for nearly every laser-welding application.
  • High-efficiency optics enable a higher average power output from fewer joules.
  • User-friendly touch-screen control.
  • Advanced constant-voltage inverter power supply eliminates power spikes to deliver more effective welding and drastically extend the flashlamp life.



LZR Laser Welders Specifications
Laser crystal:Nd:YAG
Wavelength: 1064nm
Spot diameter: 0.3– 1.5mm
LZR60
LZR100
Input power:
110–230VAC, 50/60Hz, 15A, single-phase
Input power:
110–230VAC, 50/60Hz, 15A, single-phase
Output pulse energy: .25–60 joules
Output pulse energy: .25–100 joules
Maximum power: 4.0kW
Maximum power: 4.8kW
Average power: 40W
Average power: 55W
Pulse frequency: 0.5–15Hz
Pulse frequency: 0.5–15Hz
Pulse duration: 0.5–15.0mS
Pulse duration: 0.5–20.0mS
Dimensions: 21-1/2″W x 24″D x 18″H
Dimensions: 21-1/2″W x 24″D x 18″H
Approx. net weight: 34kg (75 lbs.)
Approx. net weight: 36kg (80 lbs.)





LZR 200

Specific benefits of the LZR Lasers include:

  • Work more freely inside larger weld chamber.
  • Pulse-shape settings allow you to configure your pulse to take advantage of specific metallurgic characteristics.
  • Memory cells allow you to save up to 32 individual, your most-used applications have specific configurations.
  • Small footprint.
  • Affordable – take advantage of laser welding at a cost that is truly budget friendly.
  • Superior, high-efficiency components run cooler, reducing stress on critical-wear parts, for notably longer service life and greatly reduced maintenance.
  • The LZR models ensure close, repeatable control over laser parameters to deliver precise results.
  • Up to 200 joules of output energy is more than enough for nearly every laser-welding application.
  • High-efficiency optics enable a higher average power output from fewer joules.
  • User-friendly touch-screen control.
  • Advanced constant-voltage inverter power supply eliminates power spikes to deliver more effective welding and drastically extend the flashlamp life.







LZR-200
