AIT S-18 Resistance Welding Electrode

S-18

The S-18 series is a fully customizable electrode designed with a  radius on the tip. Custom materials are also available. Contact the factory for assistance at (870)-269-4367.

Understanding AIT part numbers is very simple.  Various dimensions on the drawing are represented by letters, which correspond to values in the part number.  The beginning of the part number establishes the electrode series and material, followed by various dimensions. For example, part number S-18-2-A.031B.125C8D1.378 is a copper electrode with an A radius of .031  .  You can request a quote by filling in dimensions below in the custom part number and indicating the quantity you wish to have quoted in the comments section.  Or you can request a quote for a standard part number in the list below by entering a quantity in the box next to the desired part number.  Equivalent Avio part numbers are listed below cross referenced to AIT part numbers.

Name: Company: Email: Phone: S-18- A- B- C- D- Comments: To request a quote for a standard part number, fill in the quantity desired in the box(s) next to the desired part number below. To request a quote for a custom part number, fill in the blanks in this sample part number below and indicate the quantity desired under comments: Qty S-18-2-A.031B.125C8D1.378 S-18-3-A.031B.125C8D1.378 S-18-M-A.031B.125C8D1.378 S-18-G-A.031B.125C8D1.378 AIT Standard Part Numbers EH-125-02A EH-125-03 Avio Part Numbers

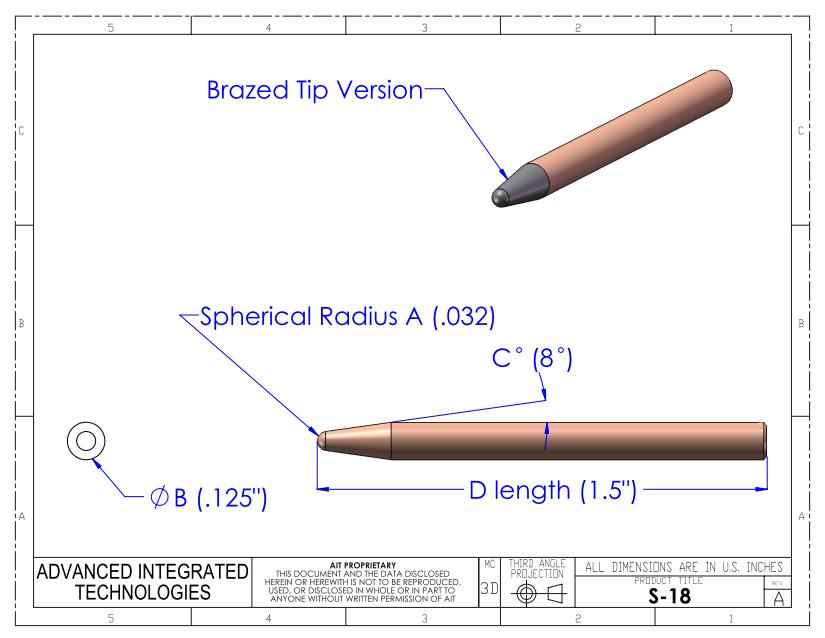

Click image to enlarge.

S-18 Resistance Welding Electrode
